| Attribute | Value |
|---|---|
| Make | Yale |

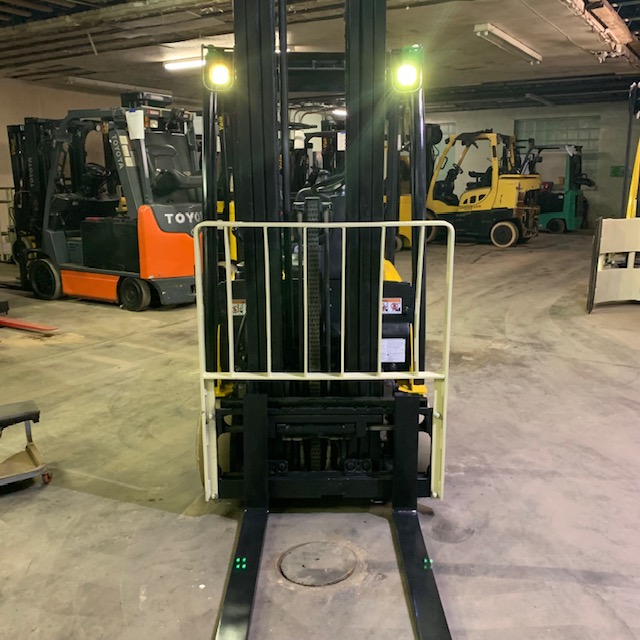

| Model | ERP040VT |
| Forklift Type | Three Wheel Electric Rider |
| Basic Capacity (lbs/kg) | 4000/1814 |
| Load Center (in/mm) | 24/610 |
| Power | Electric – 36/48 Volts |
| Battery Type | Lead Acid |
| Tilt – standard (forward/back) | 5.0/5.0 degrees |
| Length to Fork Face (in/mm) | 74.9/1903 |
| Width – standard tires (in/mm) | 43.9/1116 |
| Height to Top of Overhead Guard | Std (in/mm): 81.5/2070 Flat Plate (in/mm): 77.9/1979 Drive in Rack (in/mm): 81.5/2070 |
| Turning radius (in/mm) | 1)69.2/1757 2)71.9/1825 3)74.2(1884) |
| Right Angle Stack (in/mm) | 122.7/3117 |
| Weight without battery (lbs/kg) | 5270/2390 |
| Front Tire Size | 200 / 50-10 |
| Rear Tire Size | 15 x 4.5-8 |
| Wheelbase (in/mm) | 54.6/1386 |
Related Products
Mollit consequat adipisicing in commodo fugiat. Quis voluptate pariatur ex mollit exercitation.
36 Volts
| Attribute | Value |
|---|---|
| Minimum Weight | 2100 lbs |
| Max Amp Capacity | 1100 AH |
| Box Dimensions | 39.0" x 25.3" x 23.9" |
| Connector | SB350 / Gray |
48 Volts
| Attribute | Value |
|---|---|
| Minimum Weight | 2100 lbs |
| Max Amp Capacity | 770 AH |
| Box Dimensions | 39.0" x 25.3" x 23.9" |
| Connector | SB350 / Gray |
Used Forklifts, Fair Prices
Looking for affordable used Yale forklifts?
We have high-quality, ready-to-ship used forklifts at affordable prices in our 30,000 sq ft Ohio warehouse.
