| Attribute | Value |
|---|---|

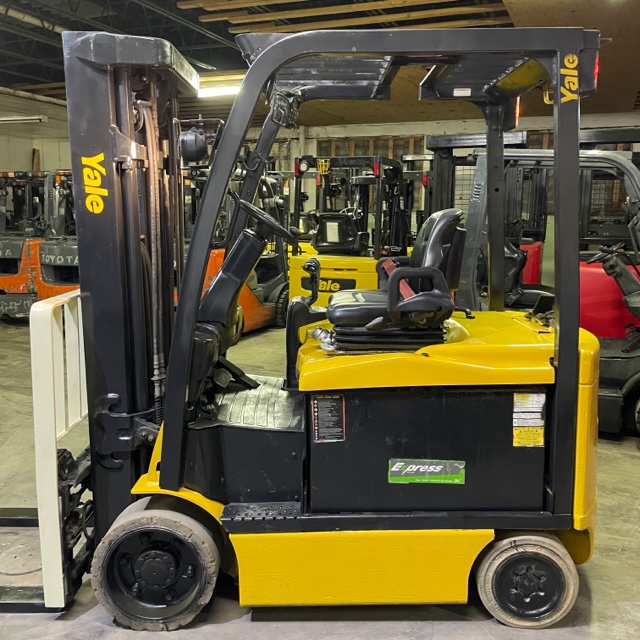

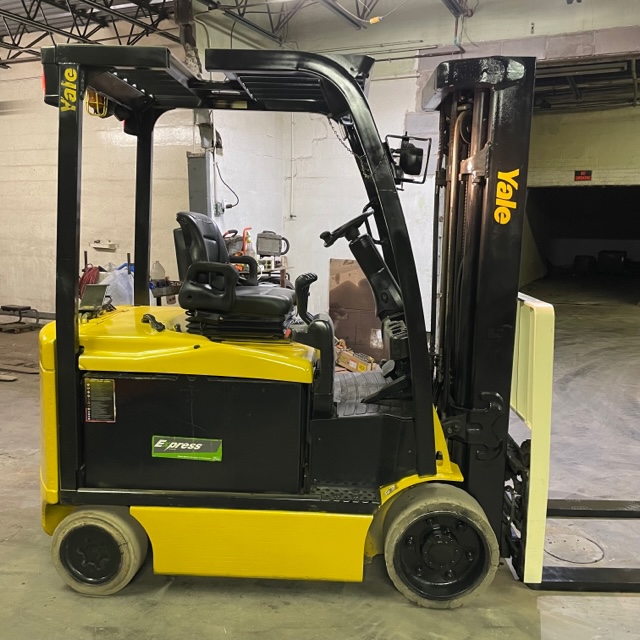

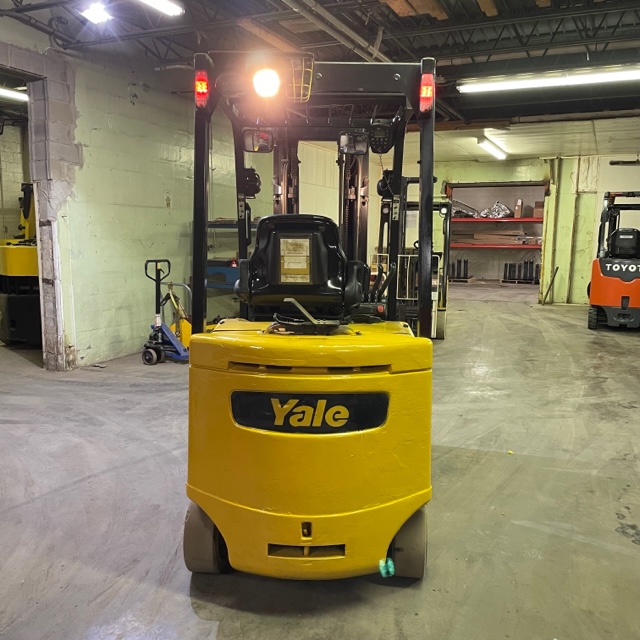

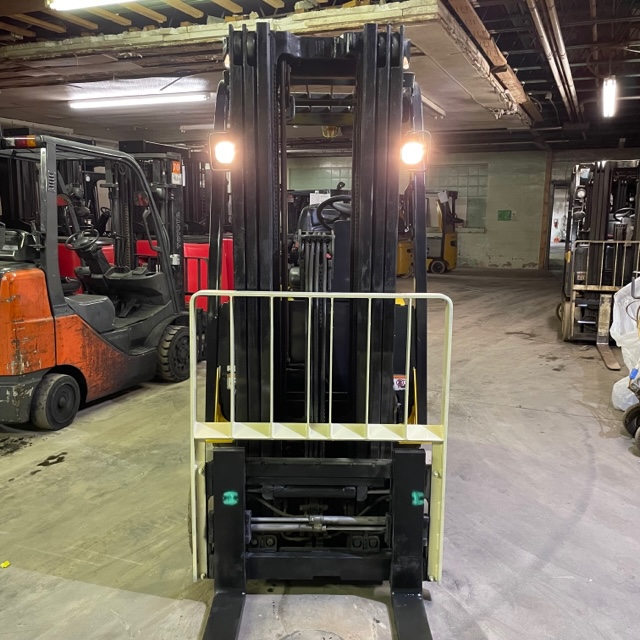

| Make | Yale |
| Model | ERC065VG |
| Basic Capacity (lbs/kg) | 6500/2948 |
| Load Center (in/mm) | 24/610 |
| Power | Electric |
| Battery Type | Lead Acid |
| Tire Type | Cushion Drive, Cushion Steer |
| Tilt – standard (forward/back) | 5.0/5.0 degrees Length to Fork Face – 36" Battery Box (in/mm): 90/2285 |
| Length to Fork Face – 40" Battery Box (in/mm) | 92.2/2343 |
| Width – standard tires (in/mm) | 43.6/1108 |
| Width – wide tread (in/mm) | 48.9/1242 |
| Height to Top of Overhead Guard Std (in/mm) | 88.5/2248 |
| Turning radius – 36" Battery Box (in/mm) | 79.1/2008 |
| Turning Radius – 40" Battery Box (in/mm) | 81.7/2074 |
| Weight without battery – 36" Battery Box (lbs/kg) | 7400/3357 |
| Weight without battery – 40" Battery Box (lbs/kg) | 7040/3193 |
| Front Tire Size | 21x8x15 |
| Rear Tire Size | 16x6x10.5 |
| Wheelbase – 36" Battery Box (in/mm) | 57.6/1463 |
| Wheelbase – 40" Battery Box (in/mm) | 60.8/1545 |
Related Products
Mollit consequat adipisicing in commodo fugiat. Quis voluptate pariatur ex mollit exercitation.
36 Volts – 36" Battery Box
| Attribute | Value |
|---|---|
| Box Dimensions | 39.10" x 36.70" x 23.90" |
| Minimum Weight | 3100lbs |
| Max Amp Hours | 1500 |
48 Volts – 40" Battery Box
| Attribute | Value |
|---|---|
| Box Dimensions | 39.10" x 36.70" x 23.90" |
| Minimum Weight | 3100lbs |
| Max Amp Hours | 1100 |
36 Volts – 40" Battery Box
| Attribute | Value |
|---|---|
| Box Dimensions | 40.00" x 39.10" x 23.90" |
| Minimum Weight | 3400lbs |
| Max Amp Hours | 1600 |
48 Volts – 40" Battery Box
| Attribute | Value |
|---|---|
| Box Dimensions | 40.00" x 39.10" x 23.90" |
| Minimum Weight | 3400lbs |
| Max Amp Hours | 1200 |
Used Forklifts, Fair Prices
Looking for affordable used Yale forklifts?
We have high-quality, ready-to-ship used forklifts at affordable prices in our 30,000 sq ft Ohio warehouse.
