| Attribute | Value |
|---|---|

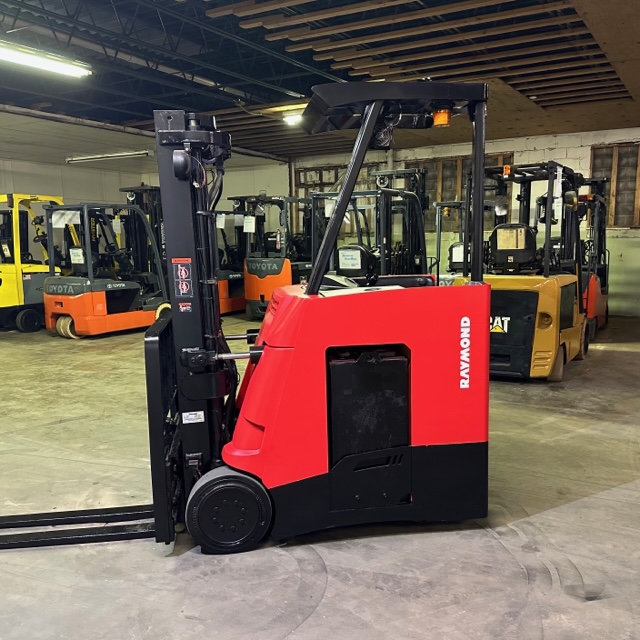

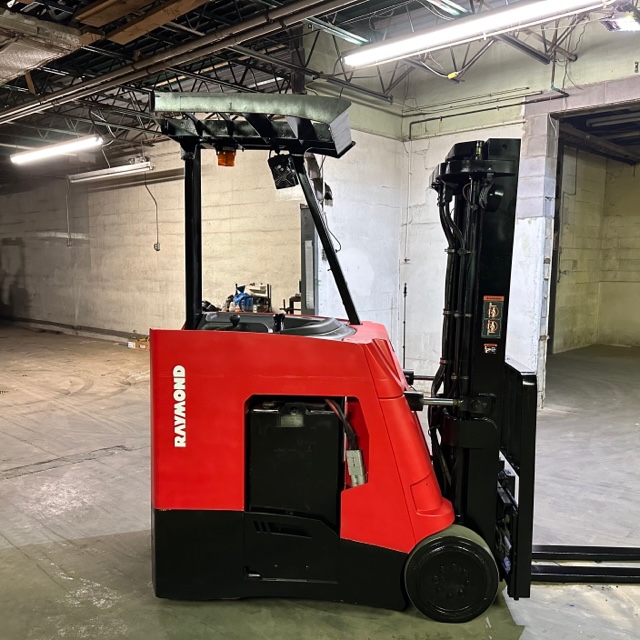

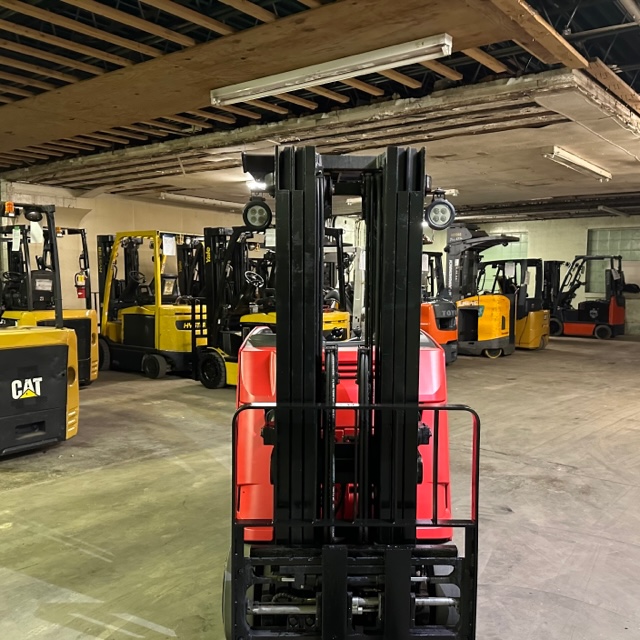

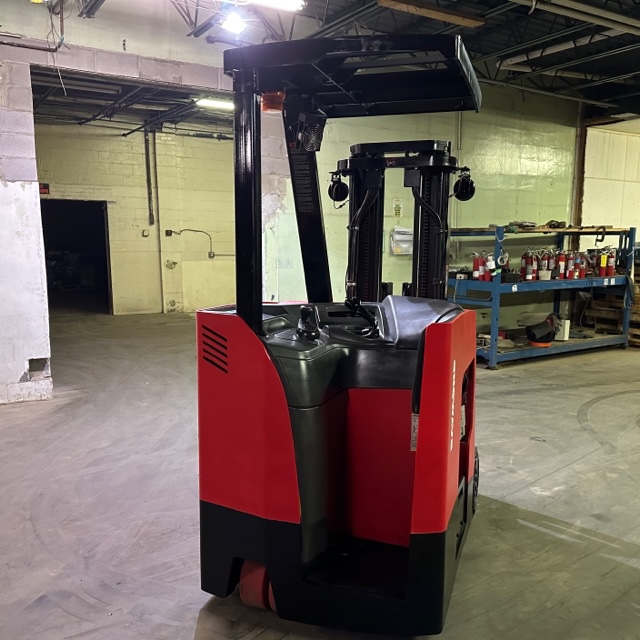

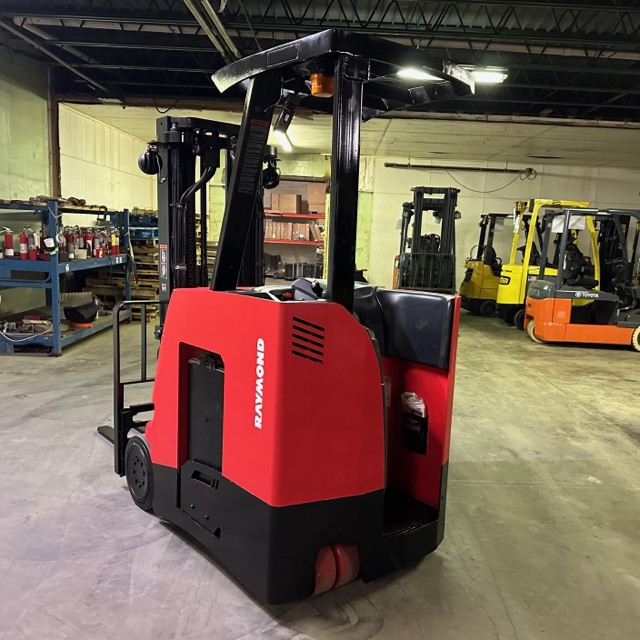

| Make | Raymond |
| Model | 4250-C35TT |
| Forklift Type | Stand Up Counterbalance |
| Basic Capacity (lbs/kg) | 3500/1587 |
| Load Center (in/mm) | 24/610 |
| Power | Electric – 36 Volts |
| Battery Type | Lead Acid |
| Tilt – standard (forward/back) | 3.0/5.0 degrees |
| Length to Fork Face w/o sideshift – 13.50" Battery Box (in/mm) | 65.4/1661 |
| Length to Fork Face w/o sideshift – 16.25" Battery Box (in/mm) | 68.2/1732 |
| Length to Fork Face w/o sideshift 18.25" Battery Box (in/mm) | 70.2/1783 |
| Width – standard tires (in/mm) | 41/1041 |
| Height to Top of Overhead Guard (in/mm) | 88/2235 |
| Turning radius – 13.50" Battery Box (in/mm) | 53.1/1349 |
| Turning radius – 16.25" Battery Box (in/mm) | 55.8/1417 |
| Turning radius – 18.25" Battery Box (in/mm) | 57.8/1468 |
| Front Tire Size | 16.25x6x11.25 |
| Rear Tire Size | 10x5x6. |
Related Products
Mollit consequat adipisicing in commodo fugiat. Quis voluptate pariatur ex mollit exercitation.
36 Volts – 14" Battery Box
| Attribute | Value |
|---|---|
| Box Dimensions | 38.50" x 13.50" x 32.30" |
| Minimum Weight | 1700lbs |
| Max Amp Hours | 800 |
36 Volts – 16" Battery Box
| Attribute | Value |
|---|---|
| Minimum Weight | 1980 lbs |
| Max Amp Capacity | 930 AH |
| Box Dimensions | 38.50" x 16.25" x 32.30" |
36 Volts – 18" Compartment
| Attribute | Value |
|---|---|
| Minimum Weight | 2300 lbs |
| Max Amp Capacity | 1085 AH |
| Box Dimensions | 38.50" x 18.25" x 32.30" |
Used Forklifts, Fair Prices
Looking for affordable used Raymond forklifts?
We have high-quality, ready-to-ship used forklifts at affordable prices in our 30,000 sq ft Ohio warehouse.
